3D-printed XXL statue for events: A bright eye-catcher for outdoor use

Our services

01 Creating and Adapting the 3D Model

The basis of the project was a 3D scan of the statue provided by the customer. On this basis, we adapted the 3D model for large format production and made it ready for printing.

This also included two design iterations to optimally coordinate form, printability, segmentation and overall effect. In addition, the surface of the statue was decorated with a deliberately designed rough stone design, which gives the figure a distinctive and high-quality appearance.

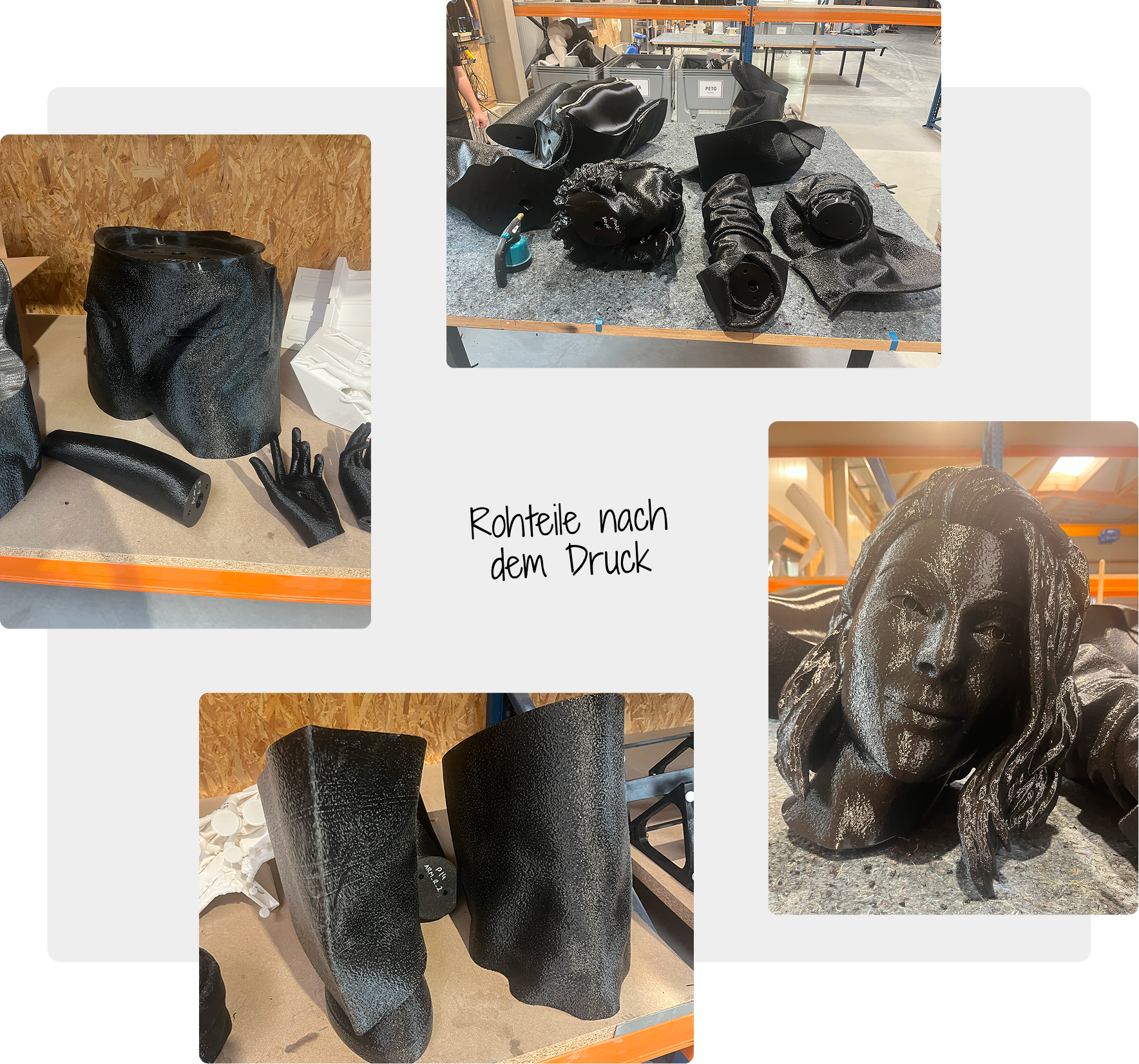

02 Large-format 3D printing in PETG

The production was carried out using large-format plastic 3D printing in PETG. A statue was produced with a height of around 370 cm, measured from the bottom of the foot to the top of the head.

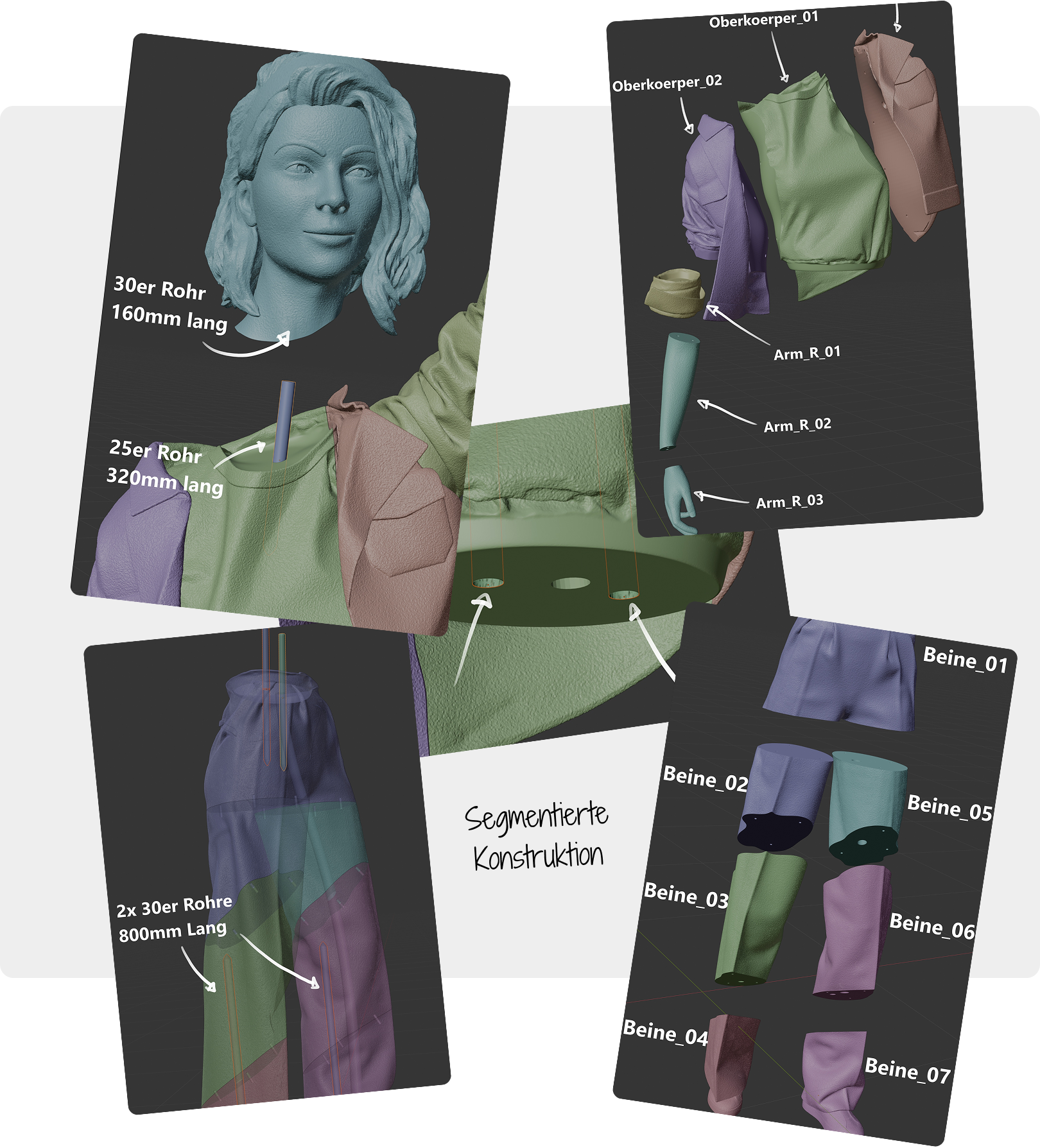

Due to its size, the figure was made in 13 individual parts. The segmented construction method was decisive in order not only to be able to produce the object in this dimension, but also to enable practicable transport, on-site assembly and subsequent storage.

Where necessary, the parts were joined with 2K high-performance adhesive. The exact division of the statue was coordinated with the customer. The final assembly on site was carried out by the customer.

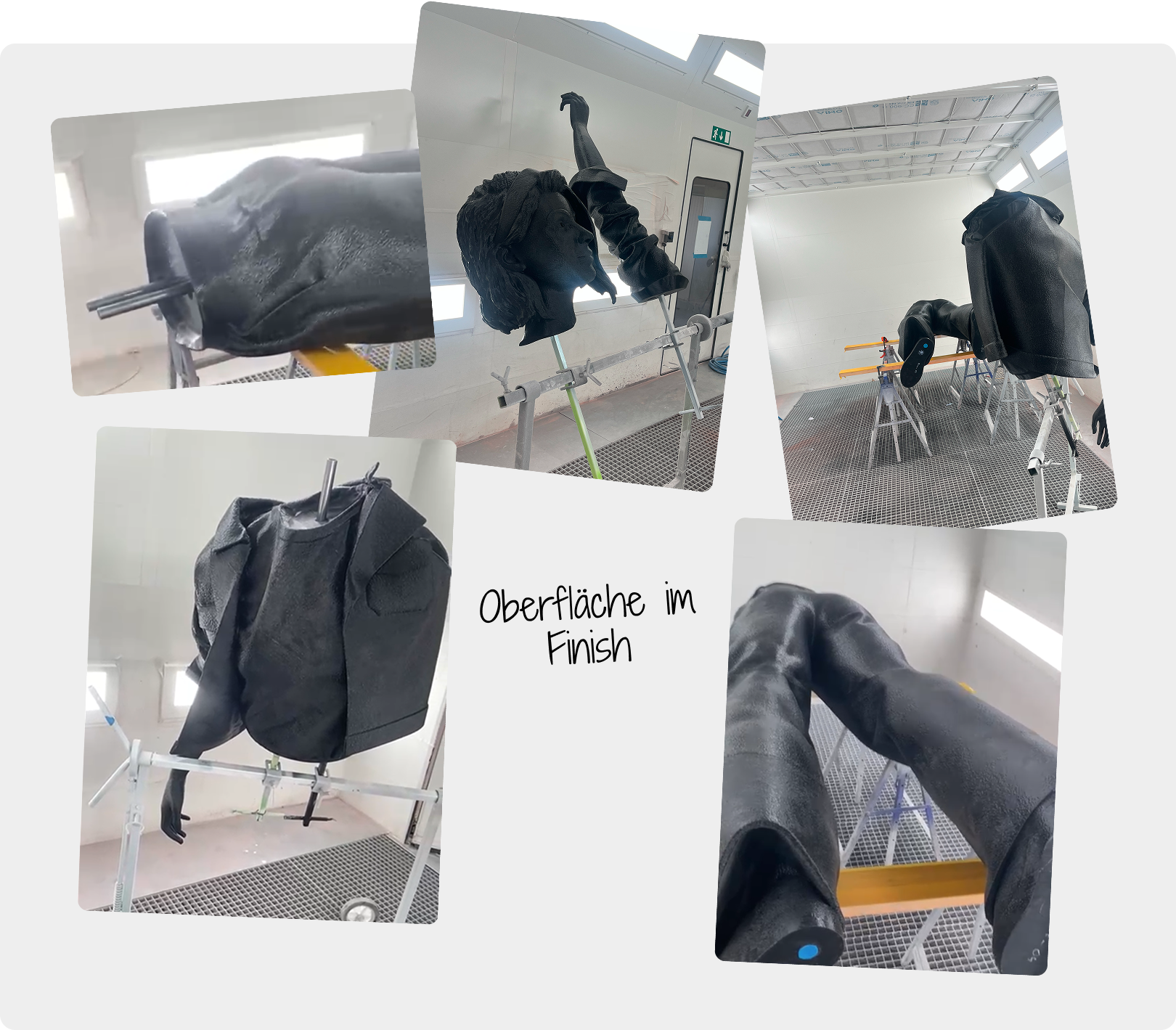

03 Post-processing and painting

After printing, the statue was extensively reworked to create the basis for a high-quality surface. This included sanding, puttying, and priming.

This was followed by a high-quality, monochrome paint according to customer specifications for temporary outdoor use. The result was a closed, professional surface that further enhances the effect of the figure and cleanly conveys the stone look.

04 Base, Stand Solution and Wind Load Statics

To securely position the statue outdoors, we also supplied a 63 cm high metal base and a suitable standing solution.

In addition, we provided wind load statics for outdoor use. Especially for large-format event objects, this is an important part of the overall concept to ensure not only the visual effect, but also the safe installation.

Project process

From 3D scan to large, printable figure

It all began with the digital processing of the customer's scan. Our task was to develop a model from this that was both visually convincing and suitable for production in this size. The shape, layout and surface design were coordinated in such a way that subsequent production and assembly could be carried out smoothly.

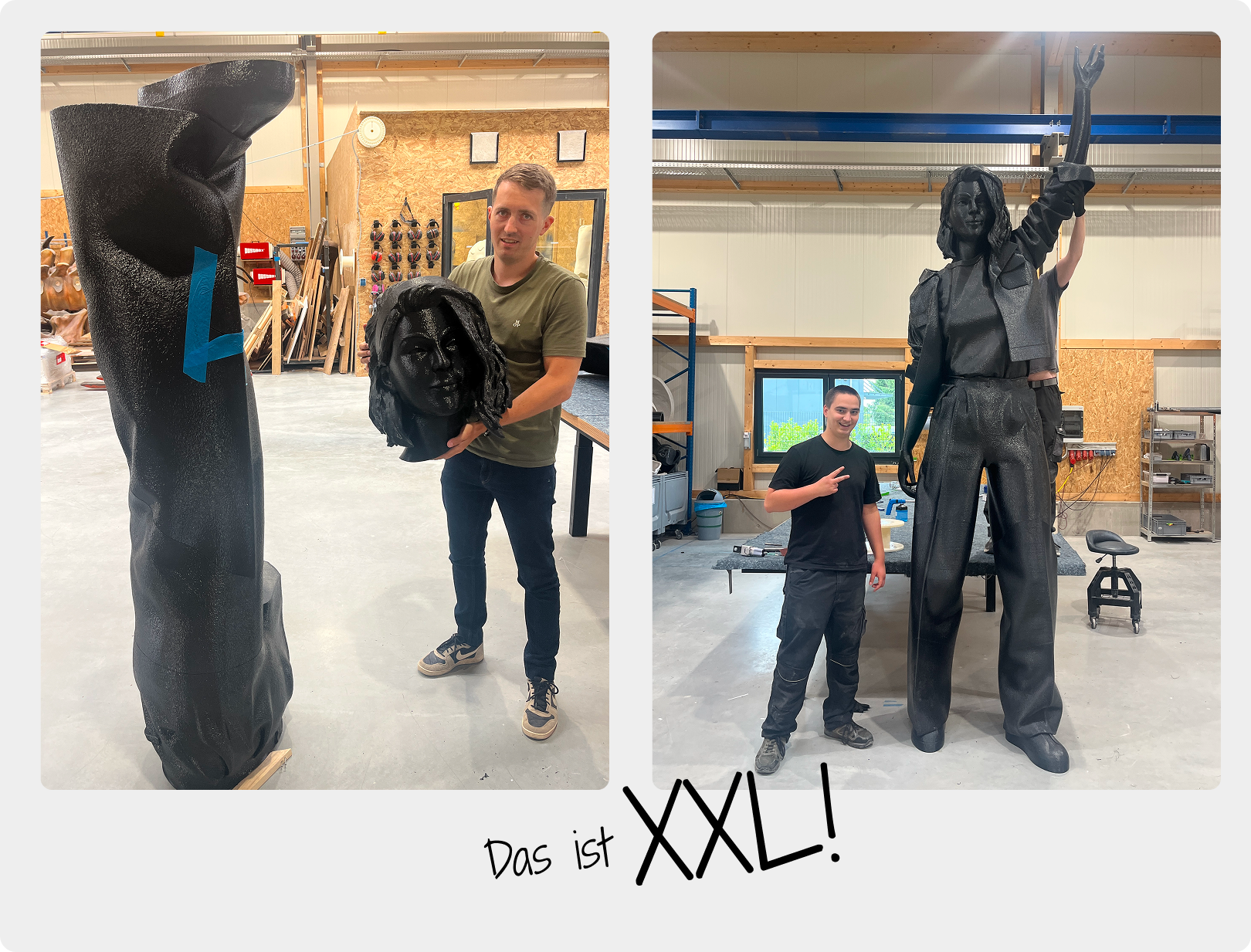

Technical Implementation of the Statue in Large Format

The figure was 3D printed in PETG and constructed in 13 segments. This construction method made it possible to produce the object on a large scale and keep it transportable at the same time.

A particular focus was on practical usability: The statue can be assembled and dismantled in individual parts. This not only makes transportation easier, but also storage between multiple uses.

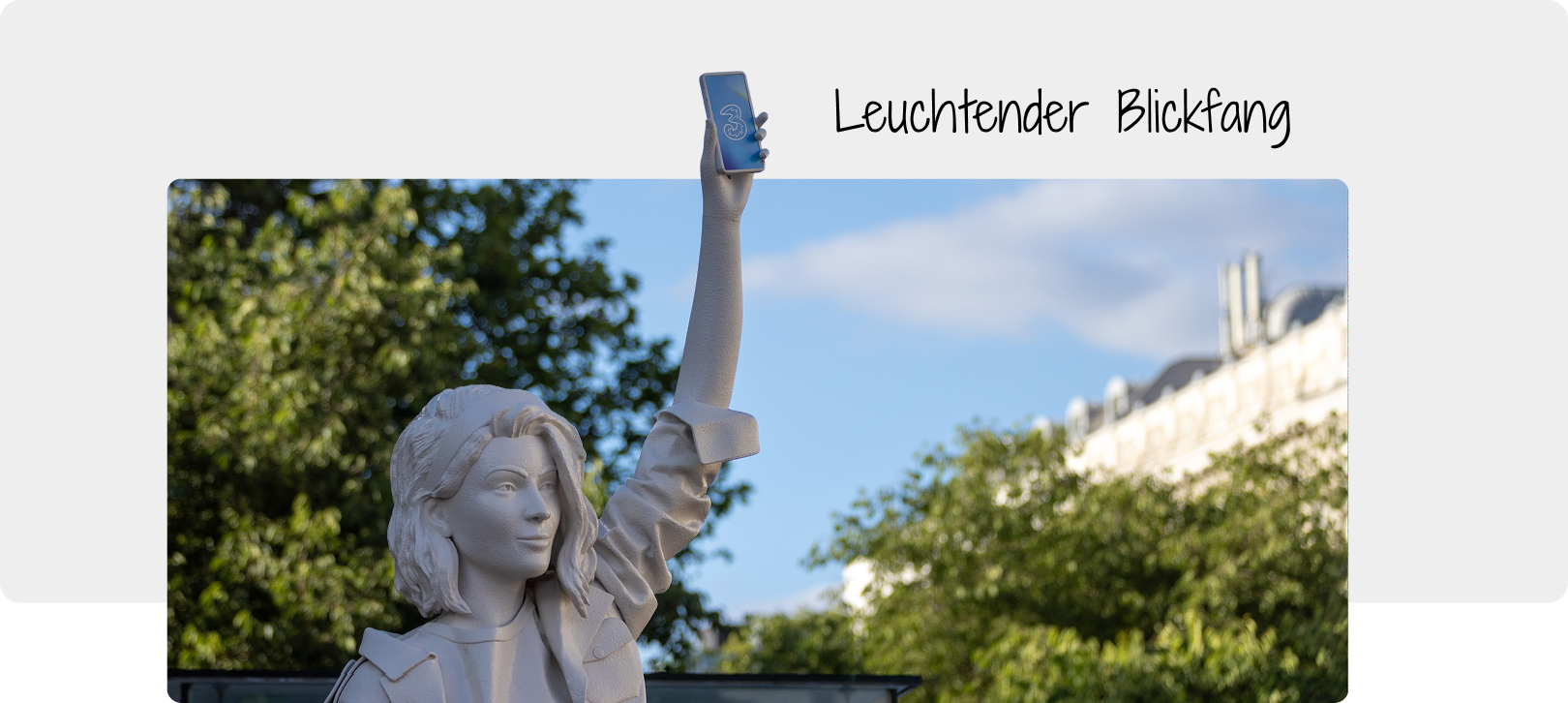

Illuminated smartphone as a central design element

The oversized smartphone in the outstretched hand was illuminated and forms the visual focus of the entire production. It is precisely this combination of size, gesture and lighting effect that makes the statue a strong brand object for events, promotions and public appearances.

Safe outdoor positioning

With a base, stand solution and wind load statics, the statue was designed in such a way that it not only looks impressive, but also meets the practical requirements of outdoor use. The result was an object that combines impact and technical safety.

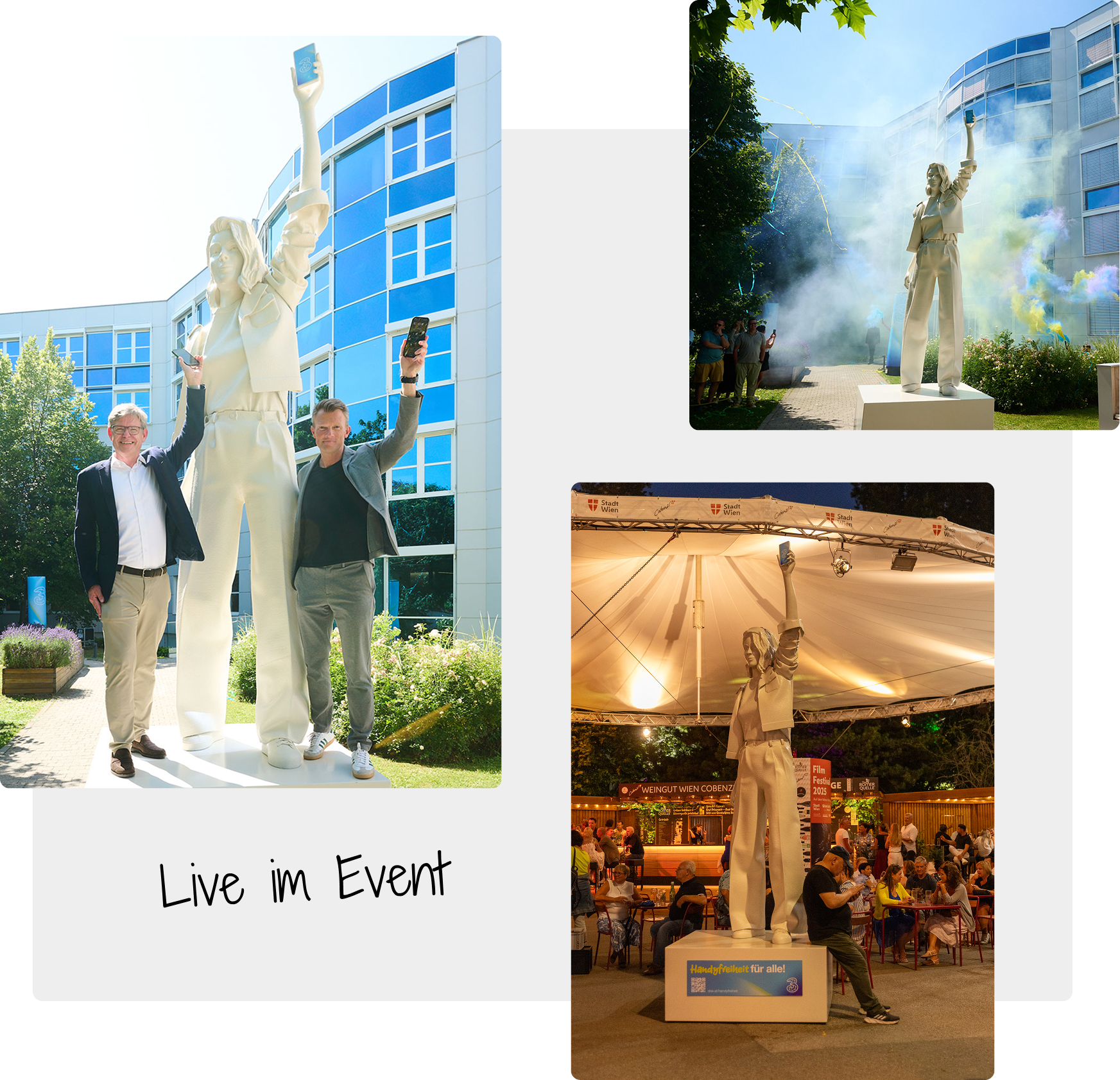

The result: A 3D-printed event statue with a strong long-range effect

In the end, an eye-catching XXL statue was created for an Austrian mobile phone provider: 370 cm high, made of 13 parts, with an illuminated smartphone, high-quality surface treatment and a secure stand solution for outdoor use.

The project shows how large format 3D printing can be used specifically for brand presentations, promotions and event objects — as a visually powerful, technically sophisticated and practical overall package.

Conclusion: Large-format 3D printing for events and brand presentation

This custom-made product shows the potential of large-format 3D printing for event agencies and brand objects. Creative Polymer took on the adjustment of the 3D model, large-format manufacturing, post-processing and painting, and the development of a secure base and stand solution including wind load statics.

The result was an object that not only makes an impression, but was built precisely to function in events.
