Oversized Goenergy can for MontanaBlack: custom-made 3D printing for spectacular X-Mas event
The huge 3D-printed beverage can for the Goenergy influencer event, the energy drink from MontanaBlack, became an extraordinary highlight.
How Creative Polymer 3D printed a giant beverage can for an influencer event
If brands want to be visible, standard is not enough. For the X-Mas special from Goenergy, the energy drink from MontanaBlack, should an exceptional highlight be created:
eine oversized beverage can, manufactured in 3D printing, floating above a show car — in the middle of a big live event.
A project involving design, construction and production under extreme time pressure combined and set the highest standards of stability, surface and safety.
Project overview: Goenergy X-Mas Special at Snow World Bispingen
The X-Mas special took place just before Christmas in the Snow World Bispingen took place and was broadcasted live on Twitch and YouTube. In addition to Monte, there were numerous well-known content creators on site — the event remained a topic of conversation on the scene even days later.
Central element of the production:
- eine huge Goenergy can
- hanging freely above a vehicle from JP Performance
- perfectly illuminated for camera and audience
About the project
Size:
2.00 m length
Weight:
50 kg
Print time:
4 days
Our services
01
3D model creation
02
Large format 3D printing
03
Assembly & painting
Project process
From concept to implementation — custom-made products under high pressure
The schedule was exceptionally tight:
- December 3rd: Project start & final idea
- December 09: Start of 3D printing
- December 21st: Completion & event

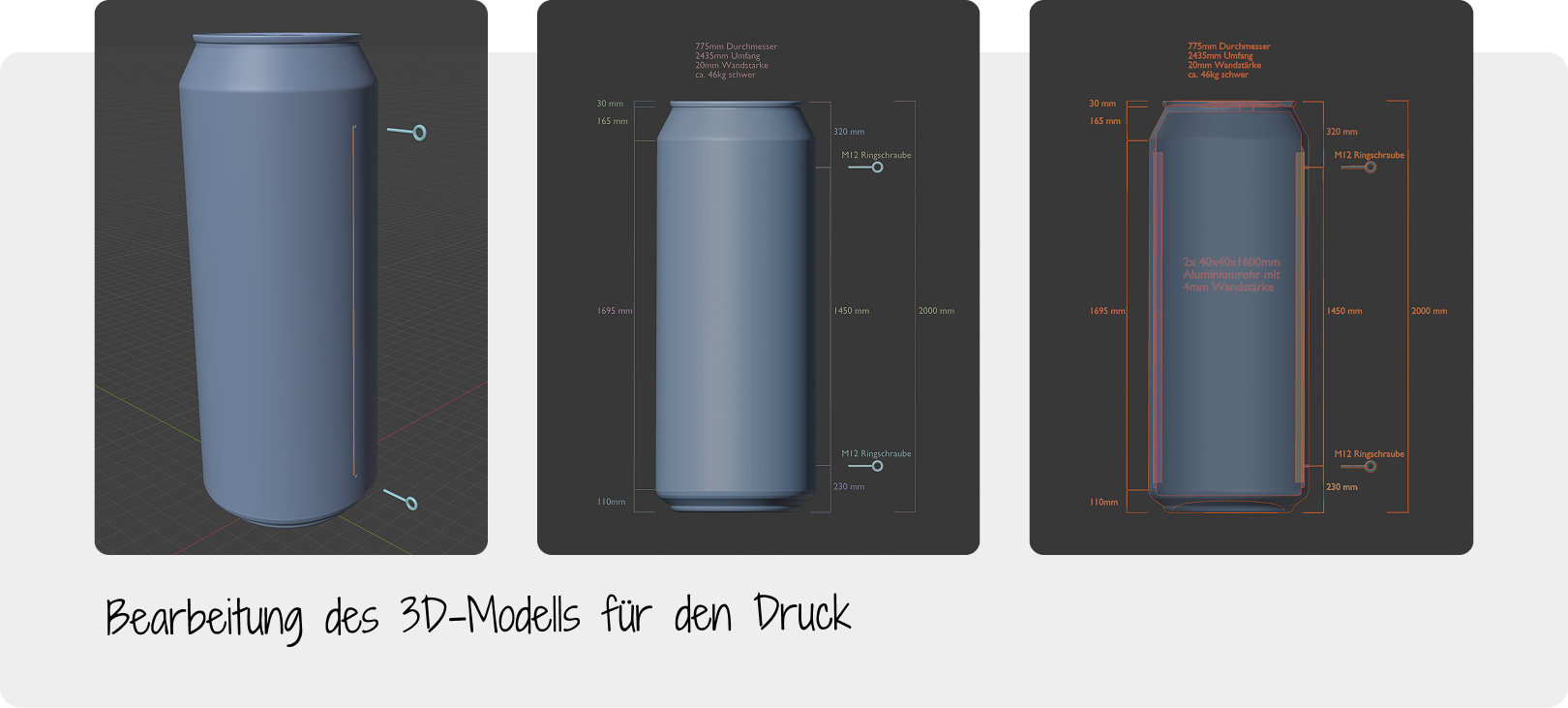

The idea and the initial 3D model came from the client.
Our job at Creative Polymer was to create this model for the large format 3D printing to optimize, constructively adapt and a safe suspension solution to develop.

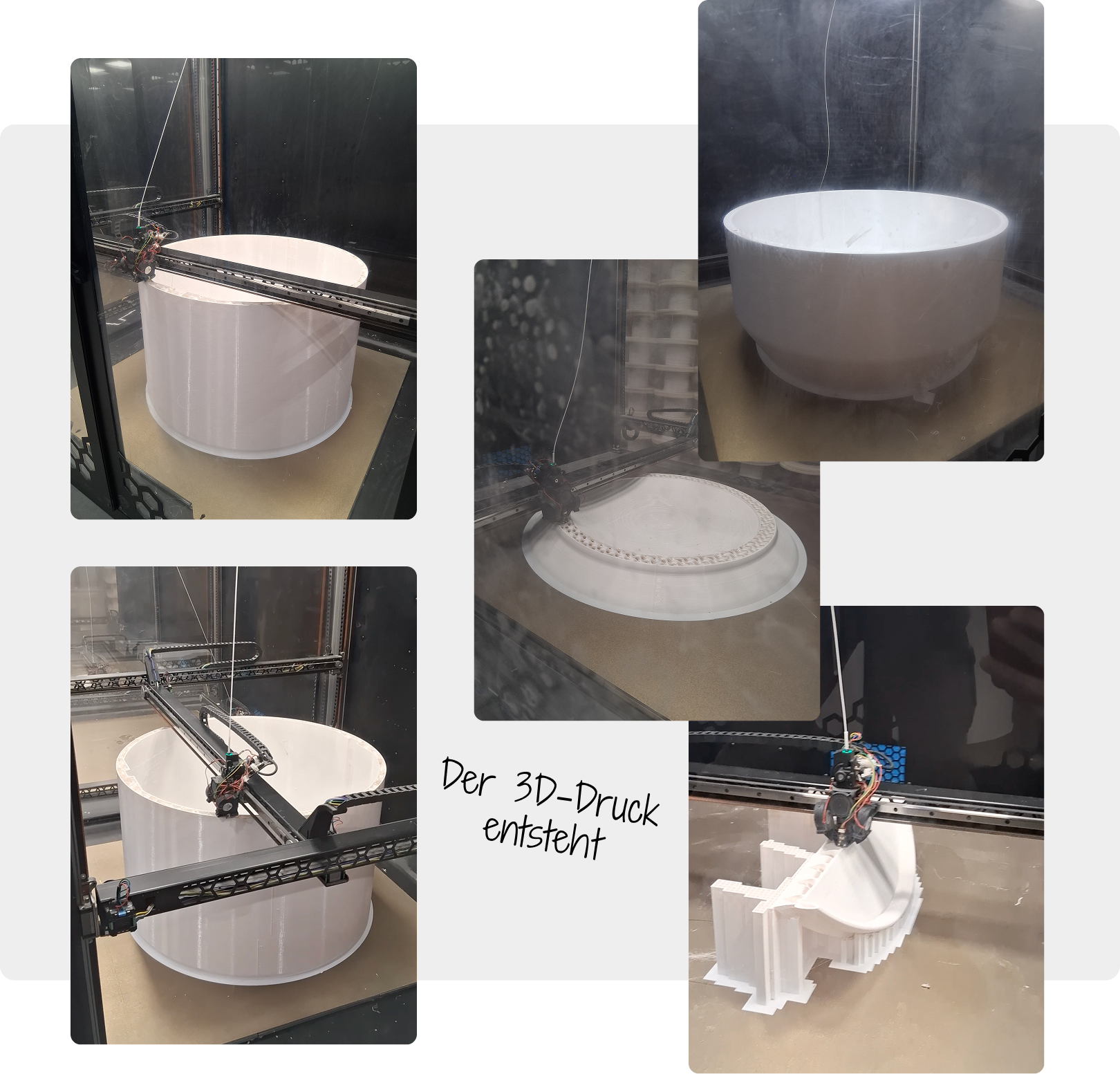

3D printing is created in individual parts. The printers ran for 4 days in a row
Technical implementation: 3D printing of an oversized beverage can
Size, weight & dimensions
The Goenergy can was deliberately converted far beyond its original size in order to achieve maximum long-range effect.
- Altitude: 2.00 m
- diameter: 80 cm
- total weight: 50 kg
For objects of this size in particular, the right balance of material use and stability plays a decisive role.

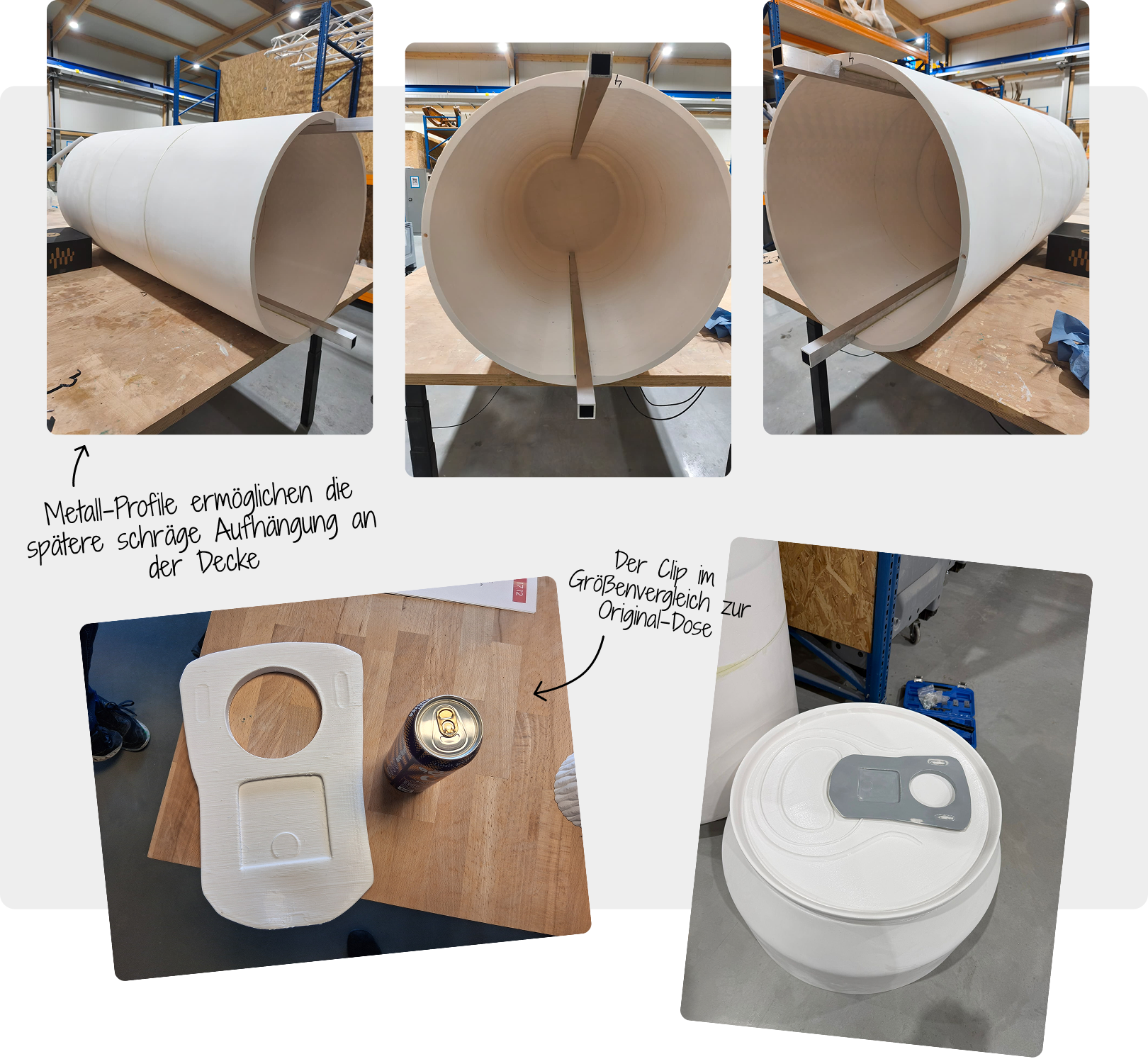

Metal profiles ensure the stability of the slanted suspension from the ceiling. Size comparison of the can clip.
Construction & stability when mounted suspended
One of the biggest challenges was the fact that the can not standing, but hanging should be presented.
Our solution:
- internal reinforcing structures
- adjusted wall thicknesses
- Specially developed bracket construction
- defined load and suspension points
This made it possible to ensure that the can even over longer periods of time could be installed safely — a decisive factor for public events.

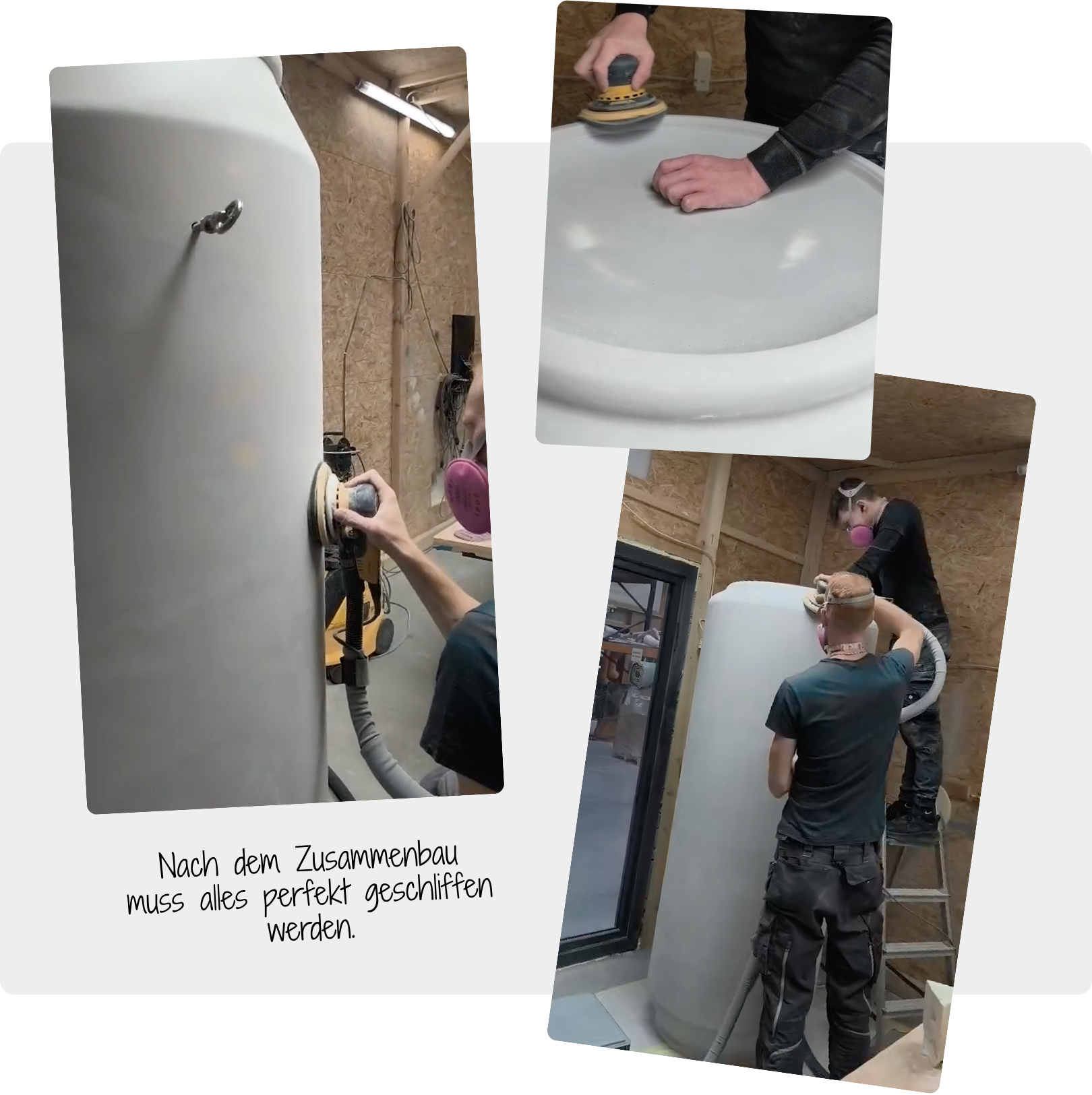

For the perfect surface finish and metal painting, the surface had to be sanded super smooth.
Printing process & production time
The can was sold in several segments in industrial 3D printing process manufactured.
- Total print time: 96 hours
- Material: sturdy technical plastic (PTG)
- Assembly: precise gluing & reworking
Printing was followed by intensive sanding and filling work to achieve an absolutely uniform surface.

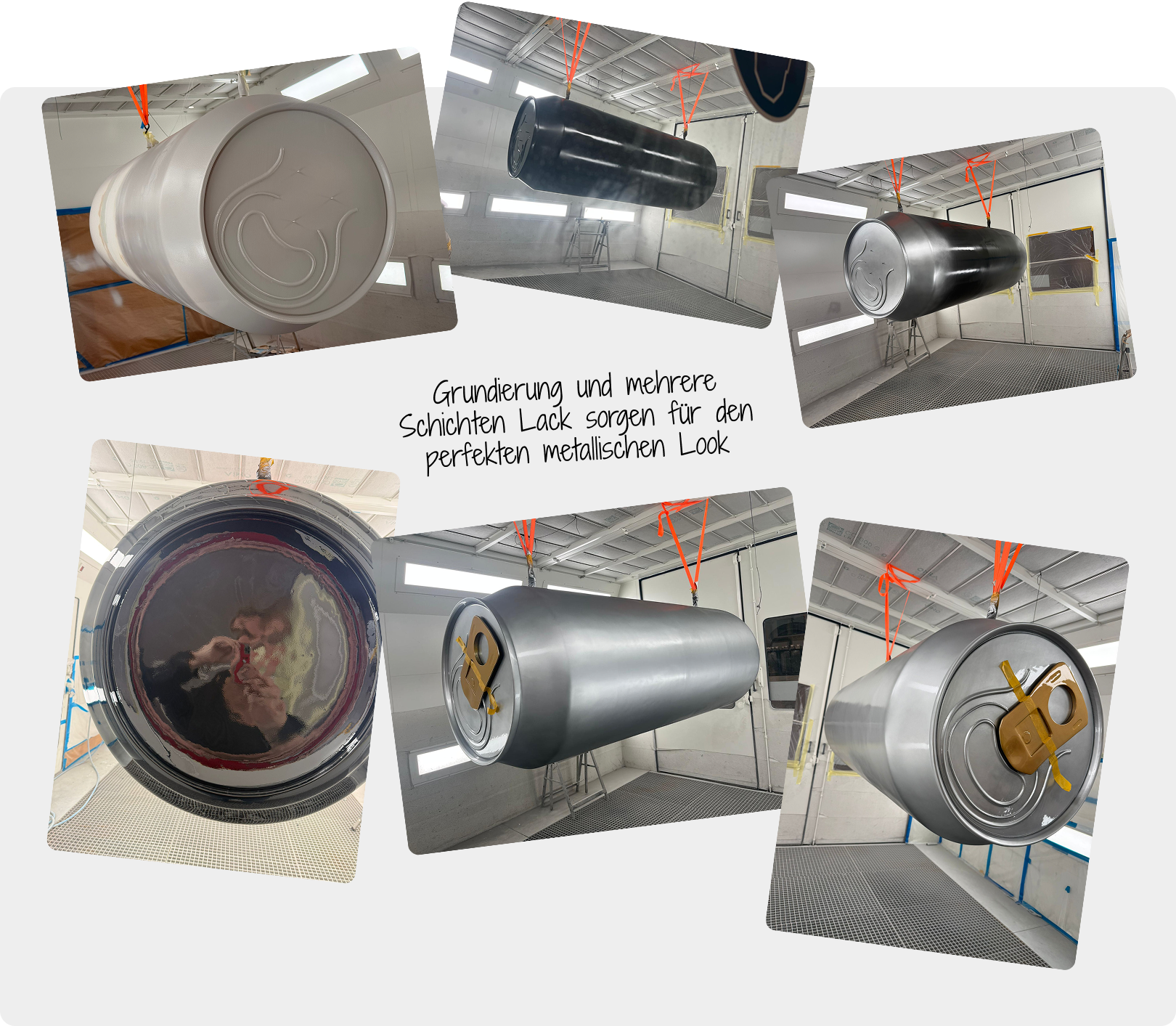

For painting, the object must first be primed and the metal look is created by several consecutive layers of paint.
Metallic paint on plastic
For the authentic look of a real beverage can, a high-quality metallic paint necessary — a particular challenge on plastic.
The paint structure comprised:
- special primers
- multi-level paint layers
- final sealing
The result: A surface that looks like real metal even at close range — ideal for event lighting and camera recordings.

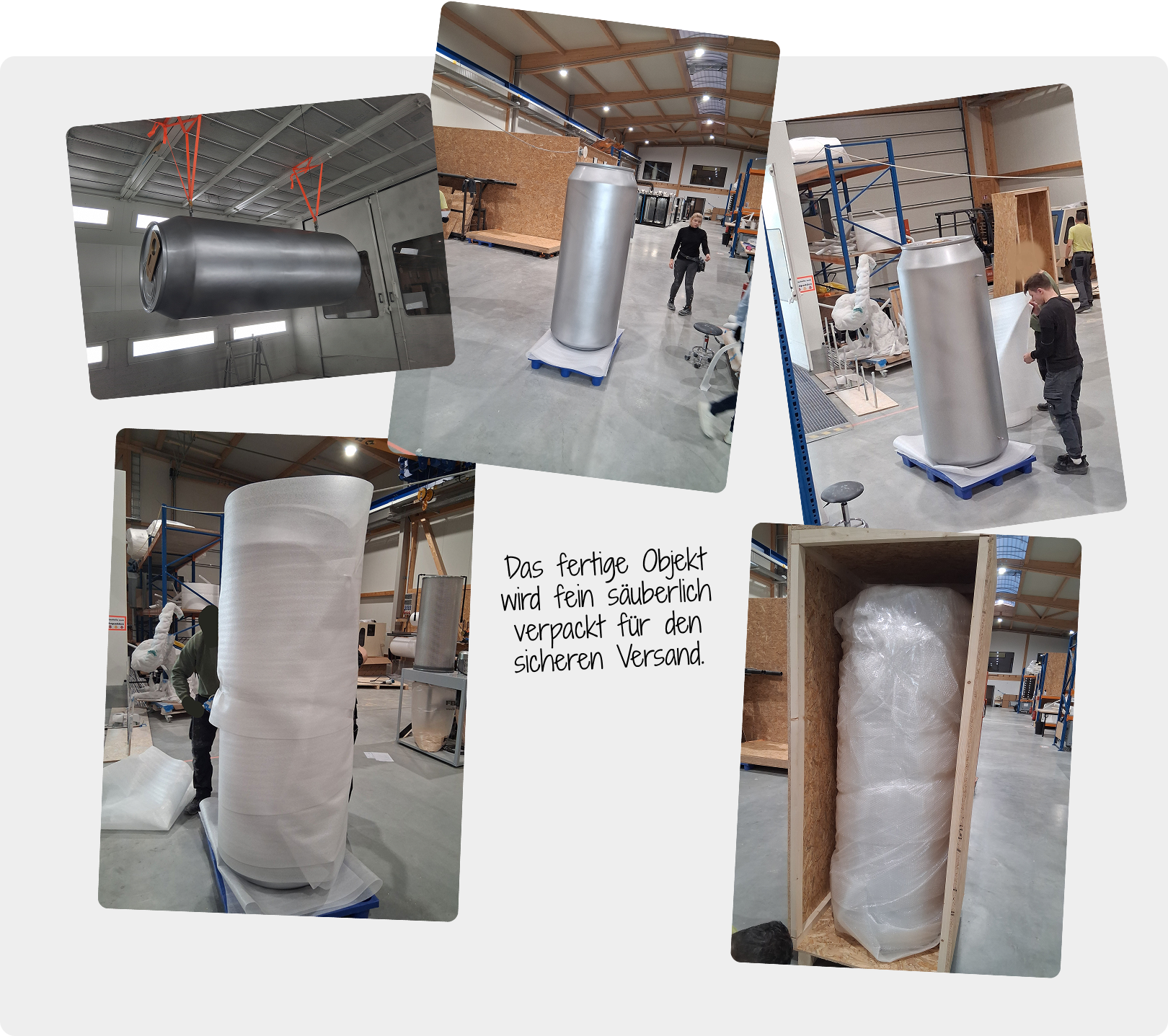

Verpackung des fertigen Objekts für den sicheren Versand
The result: An eye-catcher with maximum brand impact
On the day of the event, the oversized Goenergy can was hanging over the show car exactly as planned. It became the central eye-catcher of the event and attracted a great deal of attention on the live stream and on social media.
The combination of:
- large format 3D printing
- precise construction
- high-quality surface finishing
turned the object into an effective brand statement.
Conclusion: Large-format 3D printing for events & brand presentation
This project shows the potential of 3D printing for event and brand objects stuck — even with extremely tight schedules.
Creative Polymer took over:
- Print optimization of complex 3D models
- Construction of load-bearing structures
- Implementation of large-format custom-made products
- Surface finishing at event level
Are you planning an individual brand object, an exhibition stand or an event highlight in large format?
We create functional, stable and visually impressive 3D printing solutions — even under time pressure.
